gc textbook chapter 8 Rotational Motion (id: 44c875a35)

admin

本题目来源于试卷: gc textbook chapter 8 Rotational Motion，类别为 unclassified

[填空题]

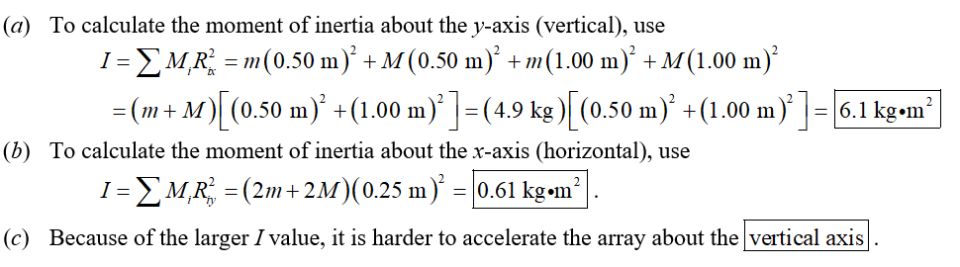

Calculate the moment of inu2bie*x;* c,uv:z swfer d 5lhqyr(gp -)lc ub,urd94,htia of the array of point objects shown in Fig. 8–43 abouul45)h9r (c-b, q,g dud hlrpyt
(a) the vertical axis,    $kg \cdot m^2$
(b) the horizontal axis. Assume m=1.8 kg,M=3.1kg and the objects are wired together by very light, rigid pieces of wire. The array is rectangular and is split through the middle by the horizontal axis.    $kg \cdot m^2$
(c) About which axis would it be harder to accelerate this array?

参考答案:
空格1: 6.1±2%  空格2: 0.61±2% 
